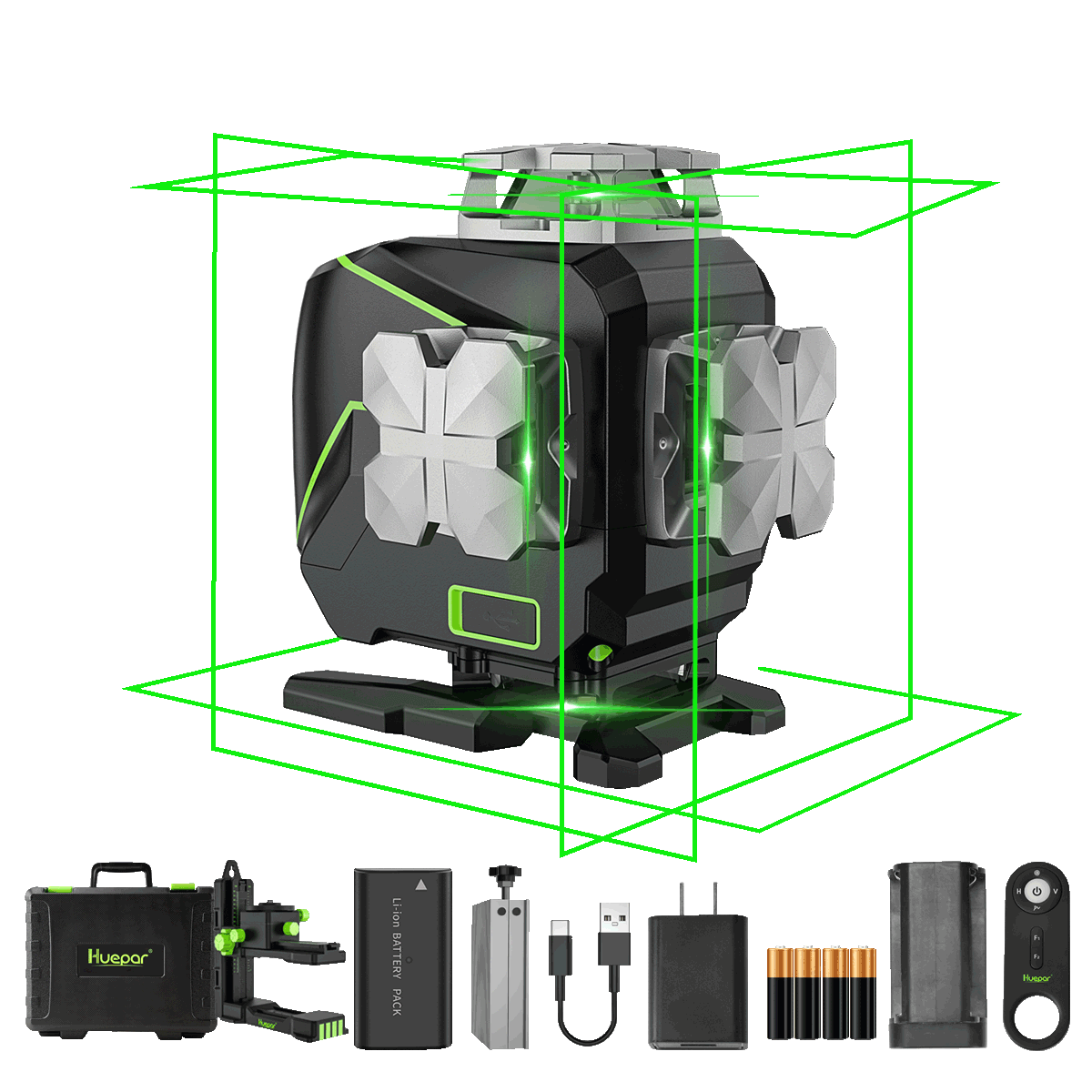

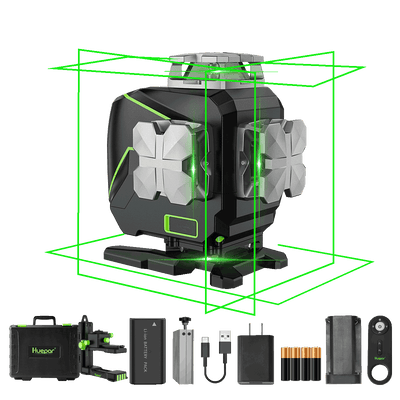

4 X 360° WITH TOP & FLOOR LINE LASER: Huepar s04cg provides four 360 planes of laser light. The top 360° horizontal line can be used for ceiling installation. The 360° floor horizontal line is for tiling installation. With the lifting base, the 360° floor laser can raise from the surface to project over and travel past uneven surfaces or obstructions between 1" and 3.54" height. Two 360° vertical lines cross at 90°angles makes user quickly visualize and finish square layout.

LCD DISPLAY & BLUETOOTH TECH: Huepar s04cg has LCD screen to easily get the status of the battery, angle, pendulum and pulse mode on the display. Bluetooth connectivity enables to control the setup of the laser from across the room with Huepar App on smart phone and remote control. The App and remote control can switch ON/OFF the laser lines and pulse mode, select the laser planes. Huepar App also provides out-of-level alarm. The laser tool can connect two Bluetooth devices simultaneously.

TRIPLE POWER METHODS & TYPE-C CHARGING PORT: This Huepar 4D laser level adopted 7.4V / 2600mAh Li-ion battery (can be purchased easily at local market) for extended run-time, or with 4 AA alkaline batteries. Besides, this 4D laser level can be used at job site by plugged in when take out the battery. With Type-C charging port, the 16 lines laser level can also be charged by laptop, power bank, car charger, etc.

MULTIFUNCTIONAL LASER TOOL: The four 360° laser planes can be selected individually by separate H and V button on the keypad. With smart pendulum, the laser tool self levels and indicates out-of-level condition while pendulum unlocked. The line laser will beep when out of self-leveling range ±3.5°. Once pendulum locked, it switches to manual mode to lock lines for use at any angle. Pulse mode extends laser range up to 200Ft. with Huepar Laser Receiver LR-6RG/LR-5RG.

MAGNETIC BRACKET & DURABLE DESIGN: Strong magnetic bracket allows for quick positioning to metal surfaces to hang the laser tool for wall applications. The laser offers 1/4"-20 mount thread to suit a standard tripod or pole mount. Over-molded metal laser window with IP54 water/dust resistance withstands tough job site conditions and can be removed and replaced with a screwdriver. The kit has a hard carry case bringing much more convenience to carry and store the laser tool.

Lines Switching & Bluetooth Technology

• Short press the "H" and "V" buttons on the keypad to switch the Horizontal and Vertical laser lines separately.
• The Bluetooth remote control / Huepar APP enables to select four 360° laser lines individually at a distance up to 98Ft.
• The laser line(s) can be temporarily turned OFF by the remote control/Huepar APP when need to leave for a while.
• In manual mode, when all laser lines are switched off, the laser tool will shut OFF automatically after about 5 minutes of inactivity.
• The laser tool can connect two Bluetooth devices simultaneously. It can connect two Bluetooth remote controls, or two smart phones(whether on Android or iOS), or one Bluetooth remote control and one smart phone at the same time.

LCD Screen Display

• Huepar S04CG laser level has LCD screen to easily get the status of the battery, angle, pendulum and pulse mode on the display.
• Icons on LCD screen: battery level, pendulum locked&unlocked status, X axis tilt angle, Y axis tilt angle, X/Y axis tilt direction, pulse mode.

Two 360° Horizontal Laser Lines for Ceiling & Tiling Applications

• Huepar S04CG laser tool generates one top 360° horizontal line for ceiling installation and one 360° floor horizontal line for tiling installation.
• With the lifting base, the 360° floor laser can raise from the surface to project over and travel past uneven surfaces or obstructions between 1" and 3.54" height.
• This 4D cross line laser level provides all-around leveling coverage for the layout of tile, stone, brick, carpet and hardwood flooring.

Pulse Mode

• After power on, short press the power button to switch ON/OFF the pulse mode.
• When connecting with Huepar APP and the Bluetooth Remote Control, the pulse mode can be switched ON/OFF via APP and remote control.
• Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver.
• It is compatible with Huepar LR-6RG / LR-5RG Laser Detector only.
• Note: Keep the pulse mode on when using with a receiver.

Self-leveling mode & Manual mode

Self-leveling mode:

• Once the pendulum unlocked, the self-leveling mode is enabled. The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±3.5°.
• With Bluetooth Tech, the locked icon will be displayed on Huepar APP and LCD screen.

Manual mode:

• When the pendulum is in the locked position, the laser tool can be placed for use at any angle.
• The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.
• With Bluetooth Tech, the locked icon will be displayed on Huepar APP and LCD screen to remind user it is in manual mode now.

Triple Power Methods

• This laser tool utilizes the included large capacity Li-ion battery which is compatible with Samsung SB-L110 battery.
• Huepar 360 laser level also comes with a holder for installing 4 AA batteries to use the tool.
• The 16 lines laser level can be used at the work site by plugged in directly when taking out the battery.
• With Type-C charging port, the laser level can also be charged by laptop, power bank, car charger, etc.

Magnetic Bracket & Mounting Thread

• The included strong magnetic bracket allows for quick positioning to metal surfaces, helping hang the laser level for wall applications.
• The four fine-tuning knobs on the bracket enable adjustment of the left and right position, front and back position within 4.8 in (12cm) and the vertical angle against the wall.
• The laser tool comes with the 1/4"-20 mount thread to suit a standard tripod or pole mount.

Durable Design & Hard Cary Case

• Metal laser window design withstands tough worksite conditions. This laser tool is dustproof, shockproof and waterproof, making it more reliable to use.
• The Metal laser window cover is replaceable that can be removed and replaced with a screwdriver.
• The kit has a hard carry case bringing much more convenience to carry and store the laser tool.

• 8000mAh Li-ion Battery: The 8000mAh rechargeable Li-ion battery provides 8 hours of working time with all four 360° laser beams on. It can be charged separately with the type-C charging port. The removable battery also has a micro-USB port to charge other devices, like laser distance meter, or other laser levels and tools.

• 3-year Warranty & Durable Design: Our professional team is happy to help you with a 36-month after-sale service and lifetime technical support. A durable hard carry case is included for easier carriage and storage. The laser window cover is made of rugged metal, and the tool is wrapped in soft rubber for shock protection. IP54 Rating helps to withstand harsh job site conditions.

• Remote Control & Magnetic Bracket: With remote control, turn on/off pulse mode, and switch four laser lines at a distance up to 32.8 ft. Magnetic bracket offers quick positioning on metal surfaces with fine-tuning knobs to adjust laser line up&down, left&right, back&forth, and rotate 360°. The bracket has 1/4"-20 and 5/8"-11 threaded mounts on the bottom for tripods or pole mounts. The green laser level tool also has a 1/4"-20 mount thread to suit a tripod or pole mount.

• Self-leveling/Manual Mode & Line Switch: The cross-line tool has a smart pendulum to self-level in 3 seconds when unlocked. It emits a beeping sound and the laser line flashes quickly when it exceeds the self-leveling range of ±3°. Lock the pendulum to manual mode and the laser line can be used at any angle. The four 360 lines can be selected individually using the H and V buttons on the keypad.

±1/13 inch at 33Ft High Accuracy

• From a large number of laser level modules, high precision modules are selected and specially tuned by hand to produce a laser level with an accuracy of 1/13 inch at 33 feet.
• The percentage of high-precision modules in the total number of modules is only 10%.

Line Switching

• Short press the "H" and "V" buttons on the keypad to switch the Horizontal and Vertical laser lines separately.
• The remote control enables to select the four 360° laser lines individually at a distance up to 32.8Ft.
• The laser line(s) can be temporarily turned OFF by the remote control when need to leave for a while.

Smart Pendulum - Self-leveling Mode & Manual Mode

• Self-leveling mode: The pendulum unlocks to enable self-leveling mode.
• The laser beam flashes rapidly and the laser tool will beep to alert you when the tool is out of self-leveling range 3°.
• Manual Mode: The pendulum is in the locked position and the laser tool can be placed at any angle for use.
• The laser beam will flash every 3-5 seconds to remind you it is not self-leveling.

8000mAh Rechargeable Li-ion Battery

• Equipped with 8000mAh rechargeable Li-ion battery enables the laser level to work for 8 hours with all four 360° green laser beams on.
• Type-C charging port can be used to charge the battery through car charger, rechargeable treasure and other ways.
• Battery indicators let you know the power status at any time.
• The removable Li-ion battery also has a micro-USB port to be used as a power bank to charge other devices, like laser distance meter, or other laser levels and tools.

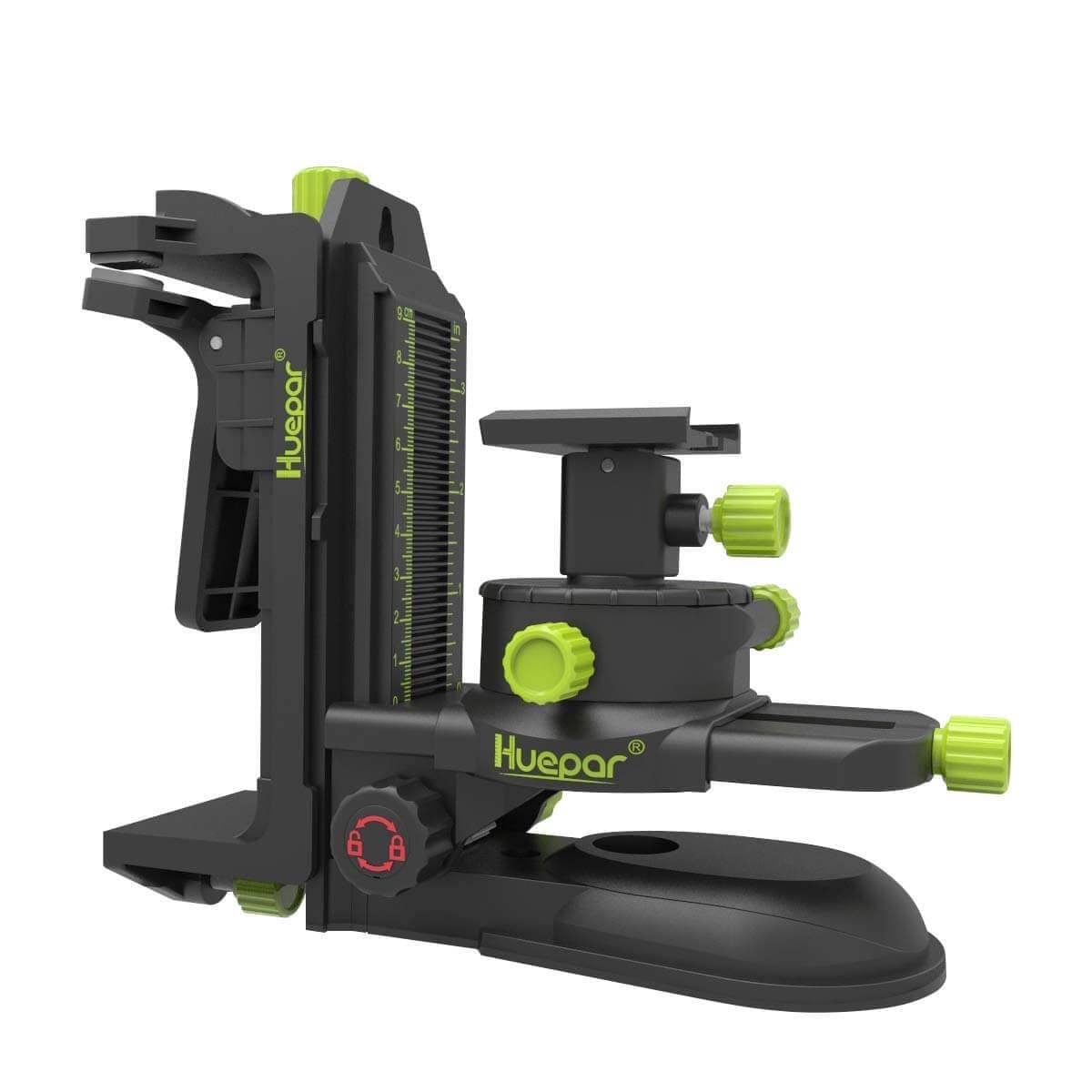

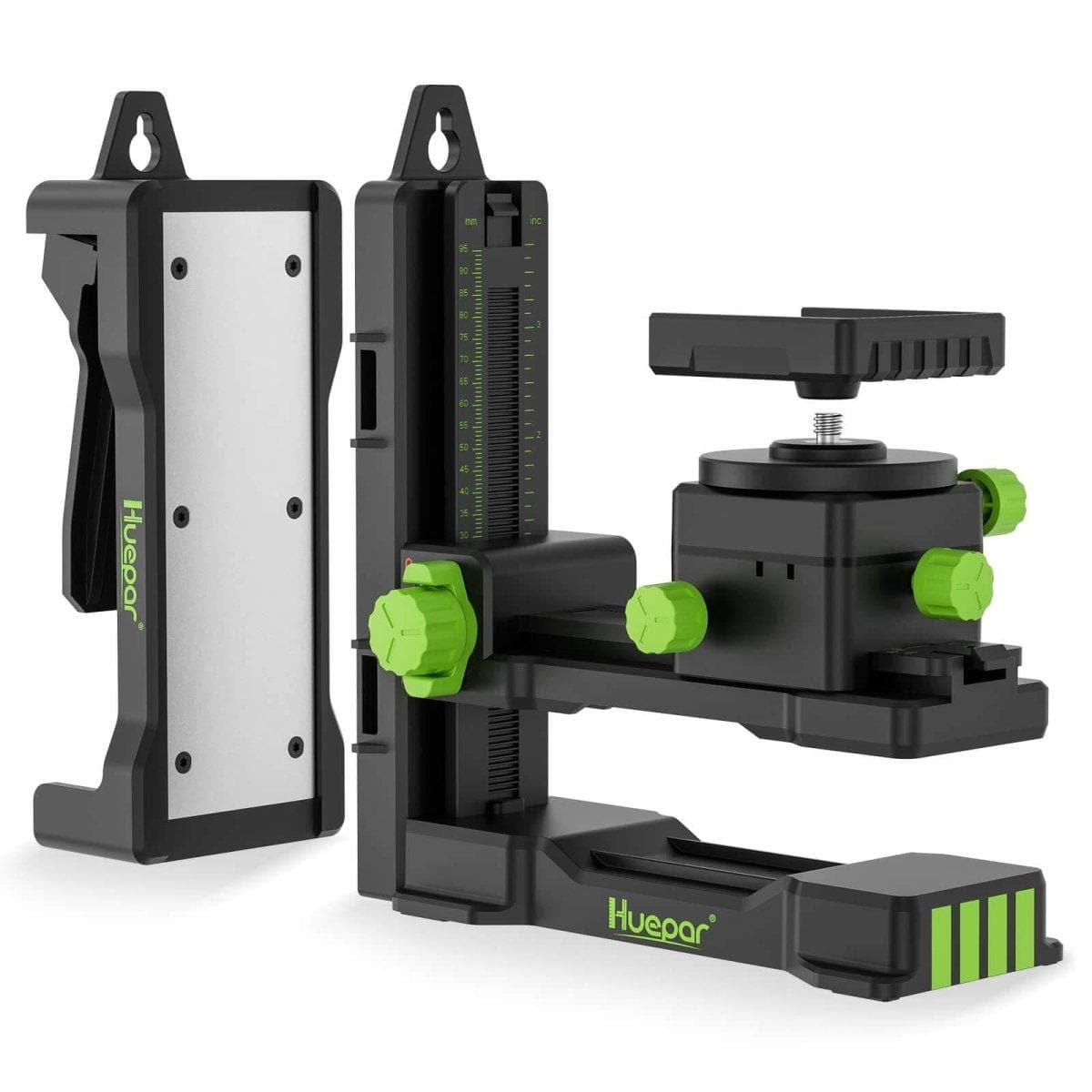

Multi-functional Magnetic Bracket

• The included strong magnetic bracket allows for quick positioning to metal surfaces, helping hang the laser level for wall and ceiling applications.
• The fine-tuning knobs on the bracket enable to adjust laser line up & down, left & right, back & forth, and rotate 360°.
• The opening size of the back clip can be adjusted, offers the ability to mount to any object up to 5cm thick. The back clip is compatible with most magnetic bases, increasing the adsorption force of the magnets and stability.
• A dedicated laser window adapter included helps to hang the laser tool, bringing the laser window closer to the wall. At this time, the bracket can be inverted or flipped sideways.
• The bracket has 1/4"-20 and 5/8"-11 threaded mounts on bottom to be used with tripods or pole mounts. And the laser tool also has 1/4"-20 mount thread to suit a tripod or pole mount.

Pulse Mode

• You can use the remote control to turn ON/OFF the pulse mode without walking around too often.
• The visible distance of the laser is 100 feet (100 LUX).
• Pulse Mode extends the working distance to 200 feet, using with a Huepar laser detector LR-6RG/LR-5RG.
• Pulse mode is for use in bright light or outdoor conditions to locate the laser line.
• Pulse mode need to be used in conjunction with a laser detector.

360° Horizontal Floor Laser & Lifting Base

• This tiling laser tool generates one 360° horizontal bottom laser on the floor or wall providing all-around leveling coverage for the layout of tile, stone, brick, carpet and hardwood flooring.
• With the lifting base, the laser lines raise from the surface between 1" and 3.3" height.

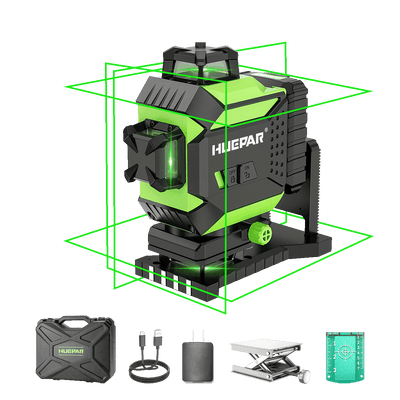

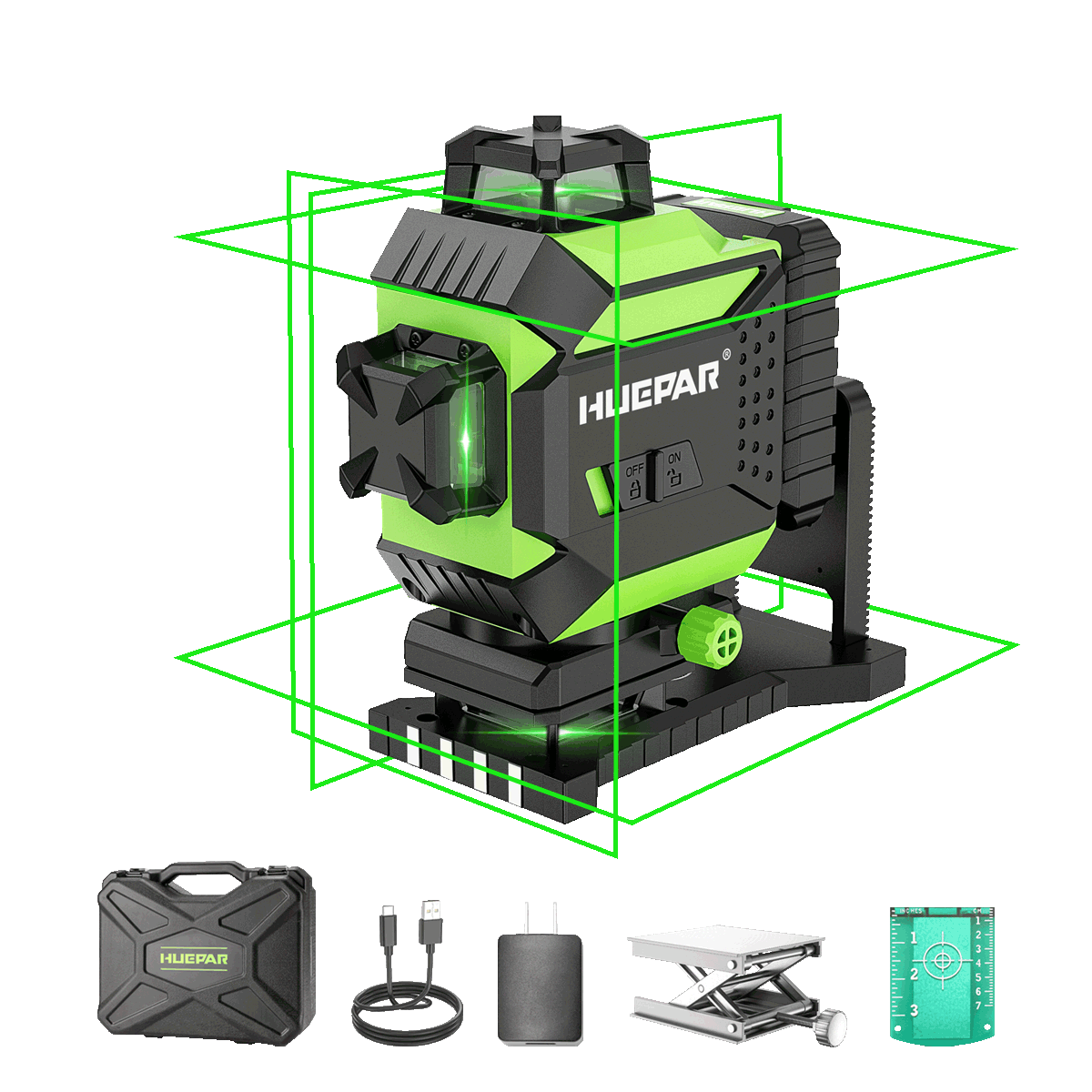

• 4 X 360° Green Laser Lines: Huepar 704CG pro laser level has 2 horizontal 360° planes. The top 360° horizontal line can be used for ceiling installation. The 360° bottom horizontal line is for tiling installation. Together with 2 vertical 360° planes, this 16 laser lines tool can cover the floor, wall, and ceiling around the room. The 360 °horizontal and 360 °vertical lines intersect at an angle of 90° to help you quickly visualize and complete the square layout.

• Removable Battery with Type-C Charging Port: The Huepar 704CG laser level comes with a removable large capacity 6600mAh lithium-ion battery for convenient replacement and continuous use. 3 indicators on the battery enable users to know the current battery level and charging status. There is a Type-C charging port on the battery that can be charged separately. The battery can also be charged by phone, laptop, power bank, car charger, etc.

• Outdoor Pulse Mode & Visibility Adjustment: This self-leveling laser adopts the bright Osram’s green laser unit, which is 4x brighter than the red beam to assist your leveling jobs, with the accuracy of ± 1/9" at 33Ft for lines. Outdoor pulse mode extends the laser range up to 197ft. with Huepar LR-6RG/LR-5RG Line Laser Receiver in bright light or outdoor conditions. Three brightness levels of the visibility adjustment function enable users to select the line brightness in different light conditions.

• Integrated Magnetic Bracket & Lifting Base: With a micro-adjust knob, the integrated 360°strong magnetic bracket allows for quick positioning to metal surfaces to hang the laser tool for wall applications and offers 1/4"-20 and 5/8"-11 mounting threads to suit different tripod threads. With the lifting base, the 360° floor laser can raise from the surface to go over and travel past uneven surfaces or obstructions between 0.95" and 3.23" height.

• Dual Modes & Line Switching: With smart pendulum, this laser level tool self levels and indicates out-of-level condition while pendulum unlocked beyond the self-leveling range ±3.5°. Once pendulum locked, it switches to manual mode to lock lines for use at any angle. The four 360° laser planes can be selected individually by the H/V button on the keypad.

4 X 360°Laser Lines Switching

• This laser tool provides four 360 planes of laser light. The top 360° horizontal line can be used for ceiling installation. The 360° bottom horizontal line is for tiling installation.
• One 360° horizontal line and one 360°vertical line cross at 90°angles that makes user quickly visualize and finish square layout.
• Short press the H/V button on the keypad to switch the Horizontal and Vertical laser lines separately.

Self-leveling & Manual Mode

Self-leveling mode:

• Once the pendulum unlocked, the self-leveling mode is enabled.
• The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±3.5°.

Manual mode:

• When the pendulum is in the locked position, the laser tool can be placed for use at any angle.
• The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.

Brightness Adjustment

• Visibility adjustment function enables users to select the line brightness in different light conditions.
• There are three levels of brightness adjustment.
• After power on, short press the brightness adjustment button to switch the brightness.

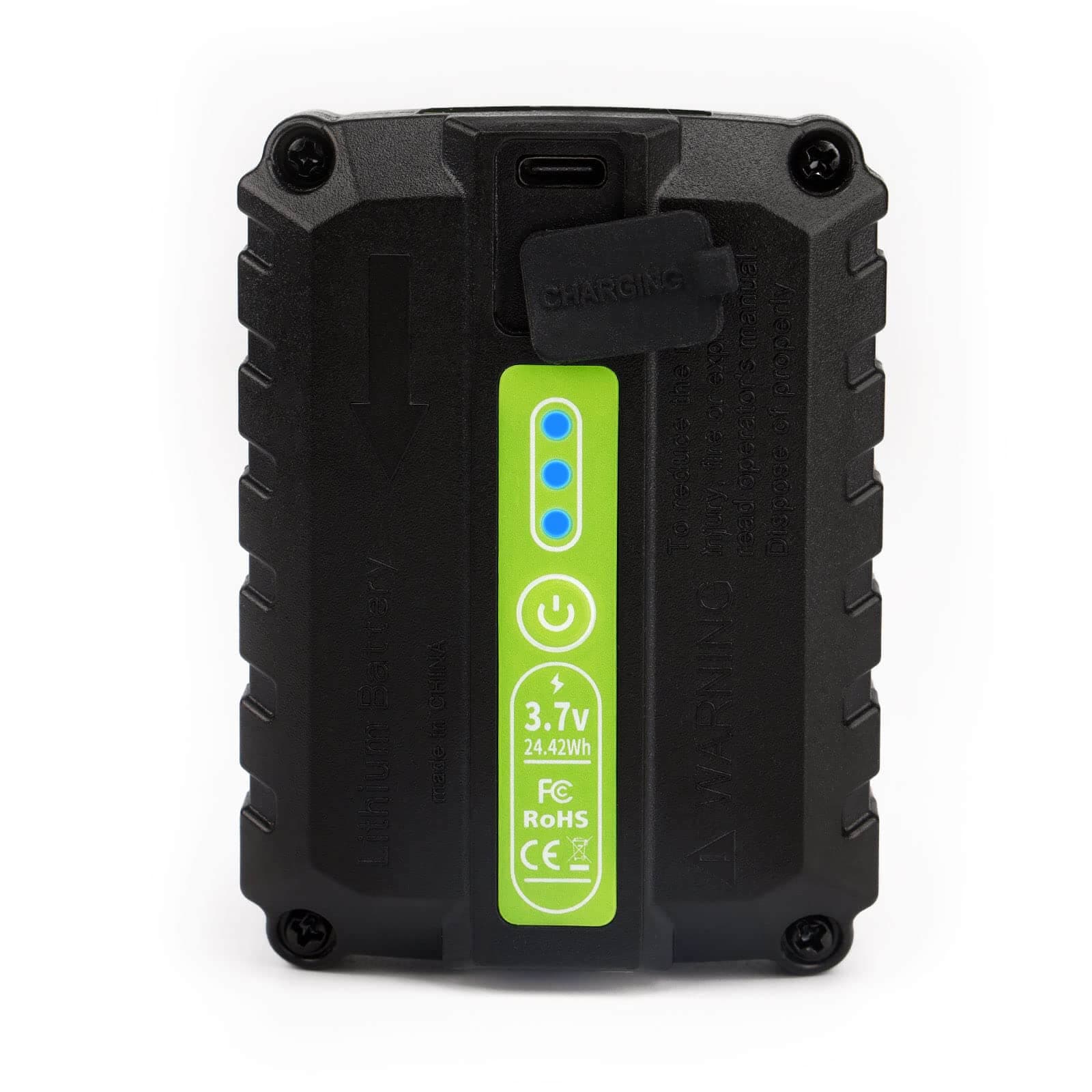

6600mAh Rechargeable Li-ion Battery & Type-C Charging Port

• Huepar 704CG laser level tool utilizes a large capacity of 3.7V / 6600mAh Li-ion battery and provides up to 6-12 hours of running time.
• A Type-C charging port on the removable Li-ion battery enables it to be charged separately.
• The battery can also be charged by phone, laptop, power bank, car charger, etc.
• 3 battery indicators on the Li-ion battery pack allow users to know current battery level and charging status.

Power-Saving Outdoor Pulse Mode

• Turn ON the pulse mode: After powering ON, short press the "P" button to switch ON/OFF the pulse mode.
• Pulse mode extends the working range up to 60m/197Ft. in brighter working conditions when using Huepar Line Laser Detector.
• When the pulse mode is activated, the laser beams are dimmer, the pressure on the eyes is less when working at close range, and the working time can be appropriately extended.
• It is compatible with Huepar LR-6RG / LR-5RG Line Laser Receiver (need to purchase separately) only.

Integrated magnetic bracket & Mounting threads

• With a micro-adjust knob, the integrated 360°strong magnetic bracket allows for quick positioning to metal surfaces to hang the laser tool for wall applications.
• This magnetic bracket offers 1/4"-20 and 5/8"-11 mounting threads to suit for different tripod threads.
• Huepar 704CG floor laser tool generates one 360° horizontal tiling laser on the floor or wall providing all-around leveling coverage for the layout of tile, stone, brick, carpet and hardwood flooring.
• With the lifting base, the laser lines raise from the surface to go over and travel past uneven surfaces or obstructions between 0.95" and 3.23" height.

High Protection Grade

• The line laser reaches IP54 protection grade (shock resistant, waterproof, dustproof, shockproof, wear-resistant, impact resistant, cold and high temperature.).
• The durable and high-quality shockproof enclosure provides 4 Ft. collision protection. It's compact and lightweight for easy gripping, but large enough to sit stably, ideal for construction site work.

Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
Laser Wavelength: 505-530nm* Screen type: LCD screen with backlight
Horizontal/Vertical Accuracy: ±3mm/10m(±1/9 in.at 33 ft)
Leveling/Compensation Range: ±3°
Working Distance (Line): 20M(60-100 LUX), 40M with Huepar Receiver LR-5RG/LR-6RG
Operating Time: 6.5 hours continual use with all laser beams on

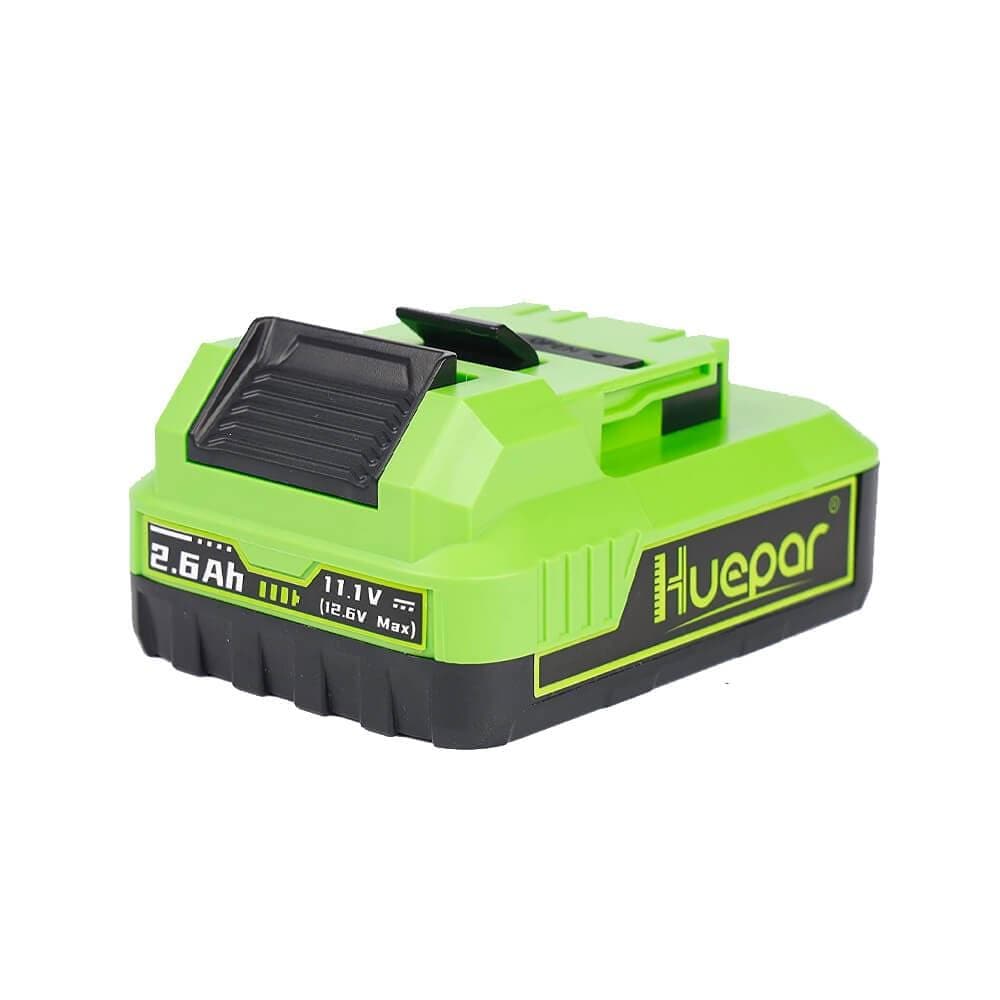

Power Source: Li-ion Battery 11.1V(12.6V Max)2600mAh
Charging Time: About 3.5 hours.
IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
Operation Temperature Range: 14℉ ~ 122℉ (-10℃~ 50℃)
Storage Temperature Range: -4℉ ~ 158℉ (-20℃~ 70℃)
Mount Size: 1/4"-20 & 5/8"-11

Three Speed Adjustment Electric Base

• High speed 240mm/s: suitable for measurement in open areas or environments that require fast scanning, which can improve work efficiency.
• Medium speed 48mm/s: suitable for general measurement and calibration tasks, and can be flexibly used in various working environments.
• Low speed 9.7mm/s: suitable for environments that require precision measurement or alignment work, ensuring high precision and stability of measurement.

Convenient Charging Design

• Design and Charging Ports: The laser level has two charging ports. One is located on the side of the device, and the other is used for charging through a battery.

• Battery Capacity: The level has a 2600mAh battery, allowing for long-term use within a certain range.

• Convenience and Environmental Considerations: Despite requiring battery power, the built-in charging port makes the device both convenient and environmentally friendly.

Infinite Remote Control Tangent

• The portable 2.4g wireless remote control enables users to switch between horizontal and vertical laser lines during work.

• Used for horizontal and vertical positioning on indoor and outdoor walls and floors to ensure construction accuracy.

• Helpful in home decoration tasks like wall tiles, wallpaper, and picture frame installation to maintain levelness.

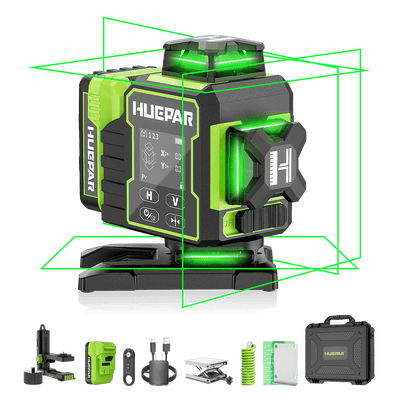

• The remote control allows users to easily control the W04CG for precise positioning and measurement, making the tool more convenient and efficient.

Long Distance Connection

• Users can remotely operate and control the laser level within a range of up to 50 meters using the app.
• For example, users can adjust the working mode and parameters directly from the mobile app on the construction site, without needing to interact physically with the equipment.

Adjustable Visibility

• Minimum Brightness: Ideal for dimly lit environments, such as indoor construction sites or nighttime use.

• Medium Brightness: Suitable for general indoor or semi-bright environments.

• Maximum Brightness: Best for outdoor or strong light environments, like construction sites with direct sunlight.

Packing List

1 x Laser Level
1 x Bluetooth Remote Control
1 x Magnetic Bracket
1 x Power Adapter & Type-C cord
1 x Hard Carry Case
1 x Lifting Base
1 x Lase Level User Manual
1 x Steel Sheet
1 x Laser Target Plate
1 x 1/4"-20 to 5/8" Adaptor

• UEPAR DEDICATED RECEIVER- Huepar upgraded version LR-8RG receiver can ONLY be used with Huepar Line Laser Levels that feature Pulse Mode Function. Please pay attention to that this receiver can NOT be used with Rotary Laser Level. And the receiver can NOT be used with Huepr 9011G&9211G laser level. It is recommended to use in accompany with Huepar 902CG/901CG/8211G/BOX-1G/R/GF360G/R/HM03CG/S03CG/S04CG/S03DG/LS04CG/LS03CG/LS41G/621C/R/603CG/R/ B series and P series Laser Level, etc.

• AVAILABLE FOR RED AND GREEN PULSE LASER- It is necessary to Turn ON the Pulse Mode of the laser level when using with Huepar LR-8RG laser receiver. This receiver allows the detection of Red and Green pulse laser beams in difficult light conditions, distances up to 200ft (60m). Accuracy: high accuracy ±1.5mm, it easily directs the user to position the laser higher or lower on a grade rod. This ensures an accurate level of reading all the time.

• 90dB SOUND & DOBLE VISUAL SIGNALS: Beep sounds will remind you when you find the target. Devices that are to be used indoors can reduce the sound level as it may get too loud and irritate those around you. As for open spaces, the device needs to be loud for people to hear it over a distance. As for visual signals, the LED indicators are strong enough to be visible in broad daylight. Most of the work that you do would be in the daytime, and the strong sunlight may often cause a problem.

• CLEAR MULTI-SIDED READOUTS: With Two-SIDED display on the front and back of the receiver to offer easier visual readout.This will help you check the position easily. This unit is outfitted with a dual-sided Bubble Vial on both the front and top, in order to accurately determine the level. It comes with a double-sided magnet and ¼” threading .makes it easy to mount the detector to a rod or other target point. Also, they’re lightweight and will fit into your pocket.

• CLEAR MULTI-SIDED READOUTS: With Two-SIDED LED prompt on the front and back of the receiver to offer easier visual readout.This will help you check the position easily. This unit is outfitted with a dual-sided Bubble Vial on both the front and top, in order to accurately determine the level. It comes with a double-sided magnet and ¼” threading .makes it easy to mount the detector to a rod or other target point. Also, they’re lightweight and will fit into your pocket.

!Please note NOT compatible with Rotary Laser Level

!This detector is only compatible with Huepar Line Laser Levels that feature Pulse Mode Function

!If you are not sure whether it suits for your laser tool, please confirm with us before you place an order

Move the Detector as the Direction Shown

Datum Lower than Laser Beam – Move Up

Datum Higher than Laser Beam – Move Down

When Datum in Line with Laser Beam – The LED Indicator Light is Displayed in Green

Buzzer Remind

 You could reduce the sound level when you use indoors as it may get too loud and irritate those around you. As for open spaces, the device needs to be loud for people to hear it over a distance.

A slower beeping tone signals – Move Up

A fast beeping tone signals – Move Down

Heavy-duty Clamp & Double-Sided Magnet

 The Laser Detector comes complete with two AA batteries (for more than 12 working hours of continuous use), as well as a compatible rod mounting bracket. Secure the receiver to the clamp using the ¼-inch thread mounting nut and then clamp the receiver to a grade rod or wooden pole.

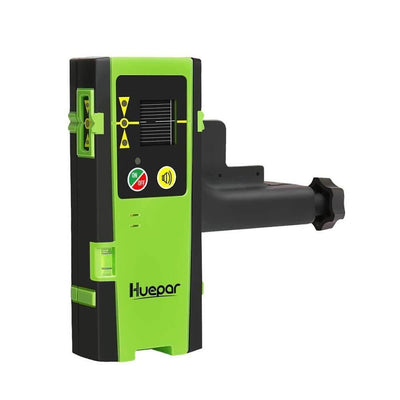

• HUEPAR DEDICATED RECEIVER- Huepar LR-6RG receiver/laser detector can ONLY be used with Huepar Line Laser Levels that feature Pulse Mode Function. Please pay attention to that this receiver can NOT be used with Rotary Laser Level. And the receiver can NOT be used with Huepar 9011G&9211G laser level. It is recommended to use in accompany with Huepar 902CG/901CG/8211G/BOX-1G/GF360G/GF360R/622CG/622CR/621CG/621CR/603CG/603CR/602CG/602CR/DT03 Laser Level.

• AVAILABLE FOR RED AND GREEN PULSE LASER- It is necessary to Turn ON the Pulse Mode of the laser level when using with Huepar LR-6RG laser receiver. This receiver allows detection of Red and Green pulse laser beams in difficult light conditions, distances up to 200ft (60m).

• CLEAR MULTI-SIDED READOUTS- Ergonomic design with display on the front, side and back of receiver, offers easier visual readout. This unit is outfitted with a dual-sided Bubble Vial on both the front and top, in order to more accurately determine the level.

• PRECISE OPTICAL AND ACOUSTIC SIGNALS- This laser receiver/laser detector features a user-friendly interface and is smart in its simple design. Optical and acoustic signals help to locate the laser plane quickly and accurately. The LED indicator provides a clear and accurate signal. Beep sounds will remind you when you find the target.

• LONG BATTERY LIFE AND CLAMP HOLDER- The receiver comes with a 9V dry battery, providing you with about 70 working hours. There is also an automatic shut-off feature that power down the device after about 8 minutes of being idle to extend battery life. The attached heavy-duty clamp makes it easy to mount the detector to a rod or other target point.

Using Tips

• !!! It is Necessary to turn ON the Pulse Mode of the Laser Level when using with the Receiver !!!!!!
• !!! Can NOT be used with Huepar 9011G/9211G/FL360R/FL360G/8300G laser level !!!
• !!! Recommended to Use the receiver with Huepar GF360G/GF360R/621CG/621CR/622CG/622CR/603CG/603CR/602CG/602CR/503CG/503DG/902CG/901CG/8211G/BOX-1G/BOX-1R/B03CG/B02CG/B21CG/DT03CG Laser Level !!!
• Make sure the laser level and the laser receiver detector windows were clean.
• Recheck the batteries in both devices (Laser level & Huepar Laser Receiver).
• Make sure your laser level can be used in accompany with Huepar Receiver.

Precise Optical Signals

Move the Detector as the Direction Shown:

• Datum Lower than Laser Beam – Move Up
• Datum Higher than Laser Beam – Move Down
• When Datum in Line with Laser Beam – The LED Indicator Light is Displayed in Green

Buzzer Remind

A beeping tone signals that the laser beam has been detected:

A slower beeping tone signals – Move Up
A fast beeping tone signals – Move Down

Clear multi-sided readouts

Three-Sided LED Displays, provide clear LED signal prompts on three sides

• LED displays on the front
• LED displays on the side
• LED displays on the back

Built-in Bubble and Holder

LR-6RG Laser Detector comes complete with a compatible rod mounting bracket. The built-in bubble level provides an extra measure of leveling accuracy.

Package Includes:

• 1*Huepar LR-6RG Laser Detector

• 1*Heavy-duty clamp

• 1*9V Dry Battery

• ARBITRARILY ADJUSTED TELESCOPIC ROD: Huepar LP36 Mounting Pole, an ideal telescopic rod for any worksite using tools that can be easily placed at any height between the floor and ceiling. Including four telescopic rods and one tail rod, Tail Rod Section with Arbitrary telescopic rod section can telescope out another 53cm/20.87". This laser tripod Huepar LP36 has 3.7m/12.18ft when fully assembled with all sections and both end parts. The graduations are marked in black on the yellow pole in inches and centimeters.

• MULTI-FUNCTION FINE-TUNING BRACKET: Mounting Bracket with 1/4"-20 Male Thread and 5/8"-11 Thread Adapter, compatible with most line lasers and rotary lasers. The bracket can be placed at any height of the rod according to your needs. With a Height Fine-tuning knob, the fine-tuning range is 7cm. Can be adjusted within 5cm in depth so it can be used with any instrument that measures 6.5-11.5 from the back.

• HIGH STABILITY & SPRING-LOADED BASE: Laser Mounting Pole features a spring-loaded base for quick and easy tension setup. 5cm powerful spring provides a greater adjustable range and a more stable fixed requirement. The foot and head plate have a non-slip surface, and the larger force area strengthens the fixing of the end both of foot and head. Sturdy foot pedals make operation easier. Sturdy foot pedals make operation easier.

• STABLE TRIPOD BASE WITH BUILT-IN BUBBLE: Two-section legs height adjustment buckle to meet your different needs, height adjustable range 0.48m-0.84m. While a screw clamp on the side of the head stabilizes the pole so that it won’t shift. Additionally, there is a small bubble level embedded in the head to ensure that your measurements will be as accurate as possible.

• EASY TO ASSEMBLE AND TRANSPORT: The rotation of rod sections sets positions easily. The soft carry bag makes transportation easier and the storage length of 80cm is convenient for you to put in the car trunk. Package included: 4 x Telescopic Rod Section, 1 x Tail Rod (with Spring-Loaded Base, Arbitrary Telescopic Rod Section, and Floor Skid Face), 1 x Top Ceiling Skid Plate, 1 x Bracket (with 1/4"-20 Male Thread), 1 x 5/8"-11 Screw Adapter, 1 x Tripod, 1 x Transport Bag.

Huepar LP36 Laser Telescoping Pole Laser Tripod Specification:

• Rod Sections: 4 telescopic rod + 1 Tail rod
• Graduations: cm / inch
• Rod Wall Thickness: 10mm
• Connection interface between rods: 5/8"
• Height of rod section: 60cm/23.62"
• Height of arbitrary telescopic rod: 0-53cm /0-20.87"
• Max height after fully assembled: 3.7m / 12.18ft.
• Laser Tripod height: 48-84cm / 18.90-33.07"
• Bracket Mount Size:1/4"-20 & 5/8"-11
• The length of the male thread to the side of the bracket: 11.5-6.5cm / 4.53-2.56"
• Bracket Height Fine-tuning Range: 7cm / 2.76"
• Material: Aluminum with a polyurethane coating
• Gross Weight: 3.02kg / 6.66lb
• Storage length: 80cm / 31.5"

Huepar LP36 3.7m Laser Mounting Pole

• Huepar LP36 3.7m tripod laser pole is designed to work with your line or rotary lasers to help you level structures, level grade job sites, and prep farmland.
• Huepar LP36 multi-purpose support rod made of aluminum with a polyurethane coating for durability. Easy to read, Graduations are marked in black on the yellow pole in inches and centimeters.
• An ideal telescopic rod for any worksite using tools that can be easily placed at any height between the floor and ceiling
• The Tail Rod Section with Arbitrary telescopic rod section can telescope out another 53cm.
• It has 3.7m/12.18ft when fully assembled with all sections and both end parts.

Package Included:

• 4 x Telescopic Rod Section
• 1 x Tail Rod (with Spring-Loaded Base, Arbitrary Telescopic Rod Section, and Floor Skid Face)
• 1 x Top Ceiling Skid Plate
• 1 x Height Adjustable Bracket (with 1/4"-20 Male Thread)
• 1 x 5/8"-11 Screw Adapter
• 1 x Adjustable Stable Laser Tripod
• 1 x Soft Carry Bag

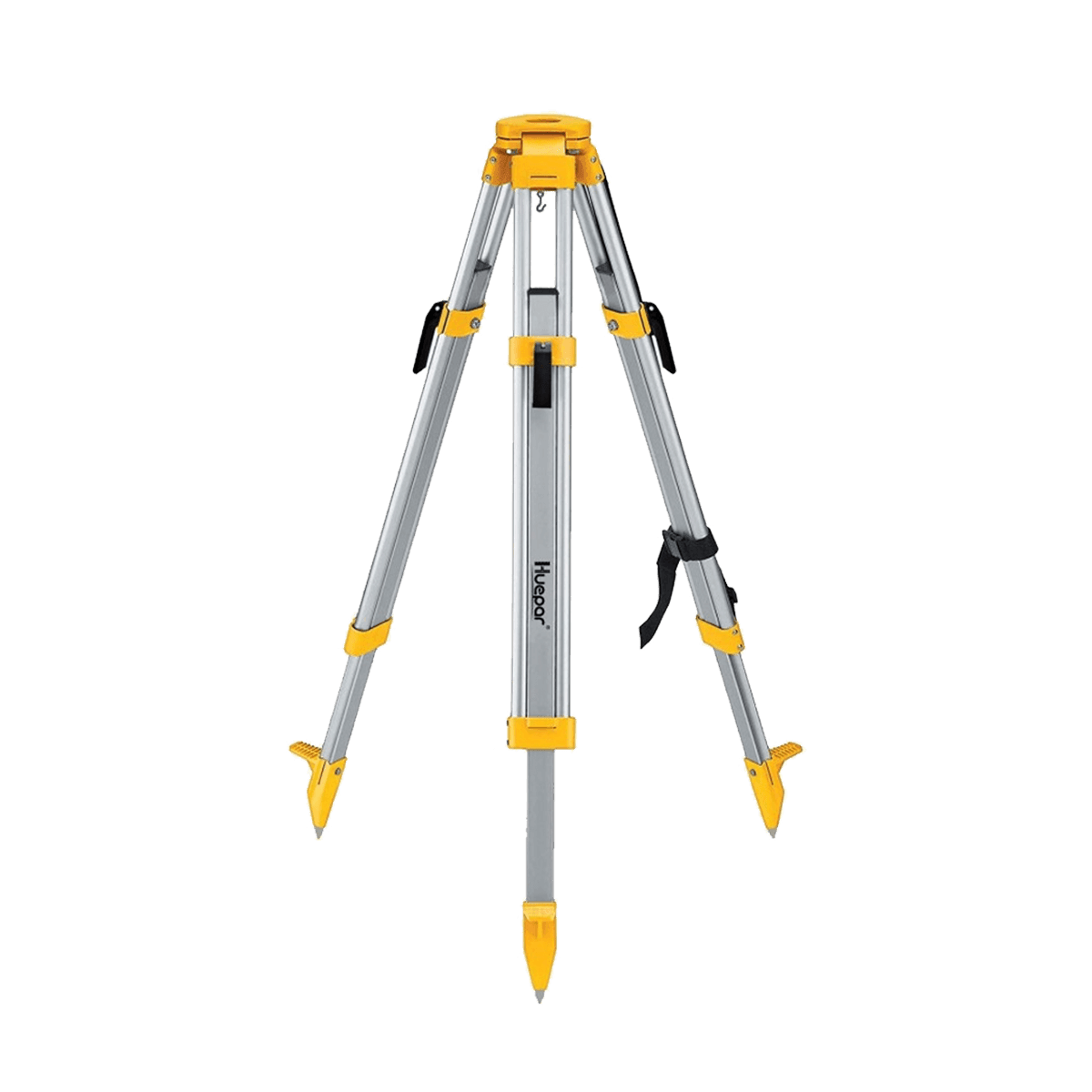

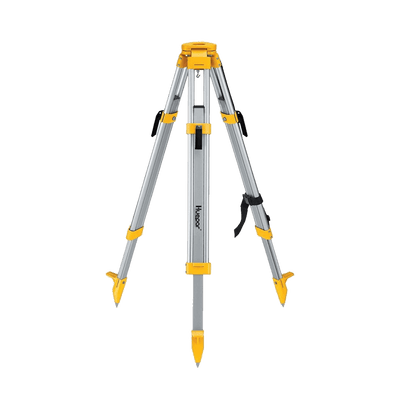

• STURDY AND DURABLE CONSTRUCTION: Suitable for construction conditions, this tripod is expertly crafted of durable aluminum with high strength to provide long-term durability and use for years to come. With the pointed steel feet, the tripod delivers secure placement on wet, soft, hard and uneven ground for steady measurement applications. The weight of the heavy tripod is 3.45kg / 7.6lb that increases installation stability.

• INDUSTRY-STANDARD 5/8"-11 MOUNTING THREAD: It features a flat head with 5/8"-11 male thread, which is easy to install and securely fixed to the measuring instrument, providing solid and stable support. The mounting knob helps to easily install the lasers, total station, automatic optical level, theodolite, rotary laser and other devices. This duty tripod is also equipped with a string hook for plumb bobs to facilitate the alignment of the theodolite.

• EXTENDABLE HEIGHT: Huepar M3Y contractor tripod provides expandable height adjustment. Each leg can be extended from 0.96m/37.80inch to 1.61m/63.39inch. Users can expand the working height of the tripod from 0.36m/14.17inch to 1.65m/63inch for different height working applications.

• ADJUSTABLE LEGS: High-strength nylon clamps offers easy setup and take-down. After adjusting the tripod's legs to the angle and height required by the user, it can be locked in place using a heavy-duty locking clip. The designed clip is larger in size, enabling users to operate more effortlessly. The metal pedals on the legs provide users with convenient operation and stability during setup and take-down the tripod.

• CARRYING STRAP FOR EASY TRANSPORT: The buckles on the strap can tighten and secure the three legs of the tripod and adjust the length of the carrying strap. The carrying strap makes it easy for users to transport tripod on the job site. The storage length is 1m/39.37inch, which is convenient for you to put in the trunk. The strap allows you to carry the tripod without difficulty when you are working on the job site and constantly moving around.

•  Quick Release Plate with 1/4"-20 Screw Mount: With quick release plate, a 1/4"-20 UNC can be converted to 5/8"-11 UNF Adapter Nut, can work with Laser Levels, Digital Cameras, Lenses, most Camcorders, Binocular, Telescopes etc.

• 3-Way Flexible Pan Head: Huepar tpd14 provides 360 degree Rotation Panoramas, allows you to rotate at any angle horizontally and vertically. The tripod head's movement is controlled by a single positioning arm and a separate knob which allows for 90°vertical tilts. The Built-in Bubble View Level can help you adjust the angle and accuracy.

• Adjustable 4-Section Legs and Center Column: Four-section legs height adjustment buckle, extended center column to meet your different needs. 0.48m-1.43m Height Range, 10kg load capacity. Net weight only 1.16kg, Light-weight but durable. Easy to carry and transport in a storage bag.

• Rotatable Rubber Feet & Multi-function hook: Large rotatable rubber feet help stand on the floor firmly and adjust angles and directions for different floor conditions and usage. Multi-function hook allows you to hang additional weight for increased stability. Suitable for outdoor or complex terrain work and shooting.

• High Quality Camera Tripod: The stable tripod laser level stand for camera is made of anodized aluminum tube (max size 23mm) and ABS environmental plastic, very sturdy. The center column and center braces are made of aluminum for extra stability. If the Huepar tripod has any problem, please feel free to contact us for good solution. Become a member through the product registration, you can enjoy longer and better product warranty.

Huepar Travel Camera Tripod is a multifunctional tripod with many advantages. Laser level stand can work with Laser Level tools, digital Cameras, Lenses, most Camcorders, Binocular, telescopes etc.

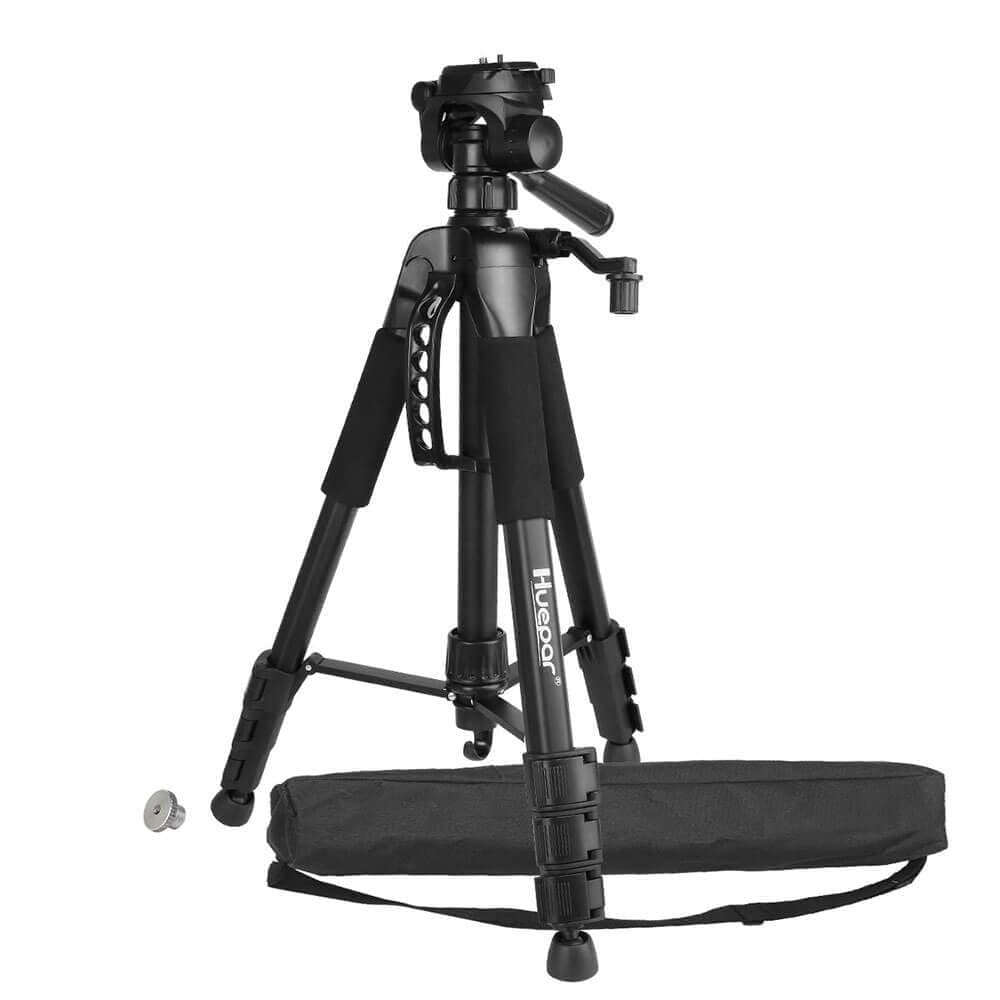

Huepar TPD14 TripodSpecification:

• Screw Mount Size: 1/4"-20, 5/8"-11
• Leg Sections: 4 Sections
• Leg Locking Type: Pull Buckle
• Head Type: Ball Head
• Pan Range: 360°
• Tilt Range: 180°
• Lateral Tilt: 90°
• Folded Length: 19.7" (50 cm)
• Min Height: 18.6" (48 cm)
• Max Height: 56.3" (143 cm)

• Quick shoe type head, 1/4 "& 5/8 female screw hole installed
• Easy operation 1 handle 3 WAY head
• Lever type leg lock and elevator adjust length
• Rubber anti-slip feet & level
• Load capacity up to 10 KG, with weight hook included

The laser level stand/ tripod can be used with most Huepar Laser Level. Such as: 901CG, 902CG, 9011G, 9211G, 9300G, BOX-1G/R, GF360G/R, 8211G, 602CG/R, 622CG/R, 621CG/R, 603CG/R, B03CG, B02CG, B21CG, 503CG, 503DG, 5011G. And also can be used with the Laser Distance Meter: LM120A, LM100A, LM90A, LM200C, LM90C.

Easy operation 1 handle 3 WAY head

If you loosen the handle and loosen it, you can adjust it to vertical 90 ° horizontal 360 °. The quick shoe plate can also be tilted by 90 °. During operation, the tripod does not move, you can easily check the position.

The 3-Way Flexible Pan Head Provides 360 degree Rotation Panoramas. The Built-in Bubble View Level can help you adjust the angle and accuracy.

Rubber anti-slip feet & level

Since the ground plane is an anti-skid rubber feet with adjustable angle, and the tripod body also has level, you can fine-tune it according to adjustable rubber feet and level even if it is placed on uneven ground .

Quick shoe type head, 1/4 "& 5/8 female screw hole installed

We adopt a quick shoe that can be installed and removed with a single touch on the pan head part.

Package contents

• Tripod body X1

• 5/8 inch Conversion Screw X 1

• Storage Box X1

• Positioning Device for Line Lasers: The laser level bracket with 1/4"-20 male thread, the maximum depth from the 1/4''-20 thread to the back of the bracket is 8.5cm. It is compatible with most cross line laser levels with 1/4" female thread. If your laser level has a 5/8" female thread, please purchase the conversion screw adapter AD5/8 separately.

• Multi-functional Auxiliary Back Clip: A separate back clip included in the kit is compatible with most magnetic bases on the market, increasing the adsorption force of the magnets and stability. The Back Clip offers the ability to mount to any object up to 5cm thick. The vertical angle against the wall can be adjusted by the fine-tuning knobs as well as the opening size of the clip. A nail hole in the clip enables to be fixed firmly on the wall.

• Multi-directional Fine-tuning Bracket: There are four fine adjustment knobs on the laser level bracket, help to adjust the left and right position within 3cm, the front and back position within 5.5cm, the height within 9 cm, and the horizontal rotation 360°. An added locking knob enables to fix the working height and avoid sliding up and down. The graduations are marked in inches and centimeters for easy readouts.

• Multiple Installation Methods of the Bracket: 1/4"-20 and 5/8"-11 female thread makes it possible to be attached to a tripod or laser pole. With the strong magnets, the bracket can be attached to the back clip at any height or other metal surfaces. Slots for screws, nails, raceways or optional straps are designed to make the installation much firmer. Huepar PV10+ Positioning Bracket is ideal for any job site.

• Huepar Dedicated Laser Window Adapter: A dedicated Huepar laser level adapter included helps to hang the laser tool, bringing the laser window closer to the wall. At this time, the bracket can be inverted or flipped sideways. The fine-tuning knob on the adapter is for adjusting pitch angle. Due to the special design of the groove, Huepar laser level adapter is only suitable for certain models: Huepar 901CG/R, 902CG/R, 903CG/R, GF360CG/R, AK360G/R, B02CG/R, B03CG/R, B21CG/R.

• POSITIONING DEVICE FOR LINE LASERS: The bracket with 1/4"-20 male thread, the maximum depth from the 1/4''-20 thread to the back of the bracket is 9cm. It is compatible with cross line laser levels with 1/4" female thread. If your laser level has a 5/8" female thread, please purchase the conversion screw adapter AD5/8 separately.

• MULTI-FUNCTIONAL AUXILIARY SPRING BACK CLIP: A separate spring back clip included in the kit is compatible with most magnetic bases at the market, increasing the adsorption force of the magnets and stability. The Back Clip offers the ability to mount to any object up to 5cm thick. The opening size of the clip can be adjusted by the fine-tuning knob. A nail hole in the clip enables to be fixed firmly on the wall.

• MULTI-DIRECTIONAL FINE-TUNING BRACKET: There are four fine adjusting knobs on the bracket, help to adjust the left and right position within 0.8cm, the back and forth position within 5.5cm, the height within 9.5 cm, and the horizontal rotation 360°. An added locking knob enables to fix the working height and avoid from sliding up and down. The graduations are marked in inches and millimeters for easy readouts.

• MULTIPLE INSTALLATION METHODS OF THE BRACKET: 1/4"-20 and 5/8"-11 female thread makes it possible to be attached to a tripod or laser pole. With the strong magnets, the bracket can be attached to the back clip at any height or other metal surfaces. Slots for screws, nails, raceways, ropes, steel sheet or optional straps are designed to make the installation much firmer. Huepar PV11+ Positioning Bracket is ideal for any job site.

• HUEPAR DEDICATED LASER WINDOW ADAPTER: A dedicated adapter included helps to hang the laser tool, bringing the laser window closer to the wall. At this time, the bracket can be inverted or flipped sideways. Due to the special design of the groove, Huepar PV11+ adapter is only suitable for certain models: Huepar S02CG, S03CG/S03CG-L, S03DG/S03DG-L, S04CG/S04CG-L, P02CG, P03CG, P04CG

Specification of Huepar PV11+ Adjustable Base:

Multi-functional Adjustable Auxiliary Spring Back Clip

• The spring back clip is compatible with most magnetic bases at the market, increasing the adsorption force of the magnets and stability.
• The opening size of the clip can be adjusted, offers the ability to mount to any object up to 5cm thick.
• A nail hole in the clip enables to be fixed firmly on the wall.
• The size of the steel plate of the back clip is 5cm (W) x 15cm (L).

Multidirectional Adjustable Bracket

• Adjust the height within 9.5 cm. A locking knob enables to fix the working height.
• The graduations are marked in inches and millimeters for easy readouts.
• Adjust the position back and forth within 5.5cm to suit for laser tools of different size.
• Make 360° adjustments clockwise or counterclockwise.
• Adjust the horizontal position left and right within 0.8cm.

Multiple Installation Methods of the Bracket

• With the strong magnets, the bracket can be attached to the back clip at any height or other metal surfaces.
• The magnetic bracket has 1/4 In-20 and 5/8 In-11 threaded mounts on the bottom delivering versatility to be used with standard tripod or pole mounts.
• Slots for screws, nails, raceways or optional straps are designed to make the installation much firmer.

Huepar Dedicated Laser Window Adapter

• A dedicated adapter included helps to hang the laser tool, bringing the laser window closer to the wall. At this time, the bracket can be inverted or flipped sideways.
• Due to the special design of the groove, Huepar adapter is only suitable for certain models:
• Huepar S02CG, S03CG/S03CG-L, S03DG/S03DG-L, S04CG/S04CG-L, P02CG, P03CG, P04CG

Package Contents

• 1 x Magnetic Pivoting Bracket
• 1 x Multi-functional Auxiliary Spring Back Clip
• 1 x Huepar Dedicated Laser Window Adapter
• 1 x Operation Instruction

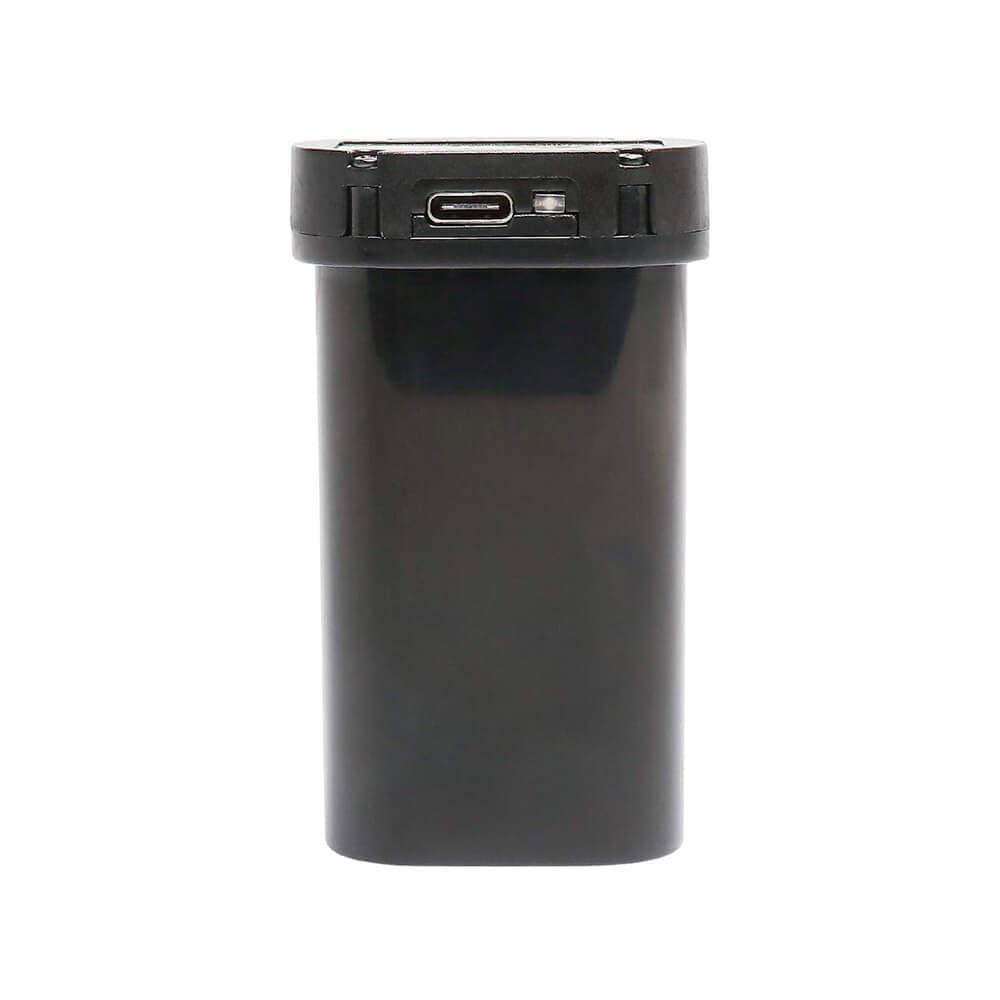

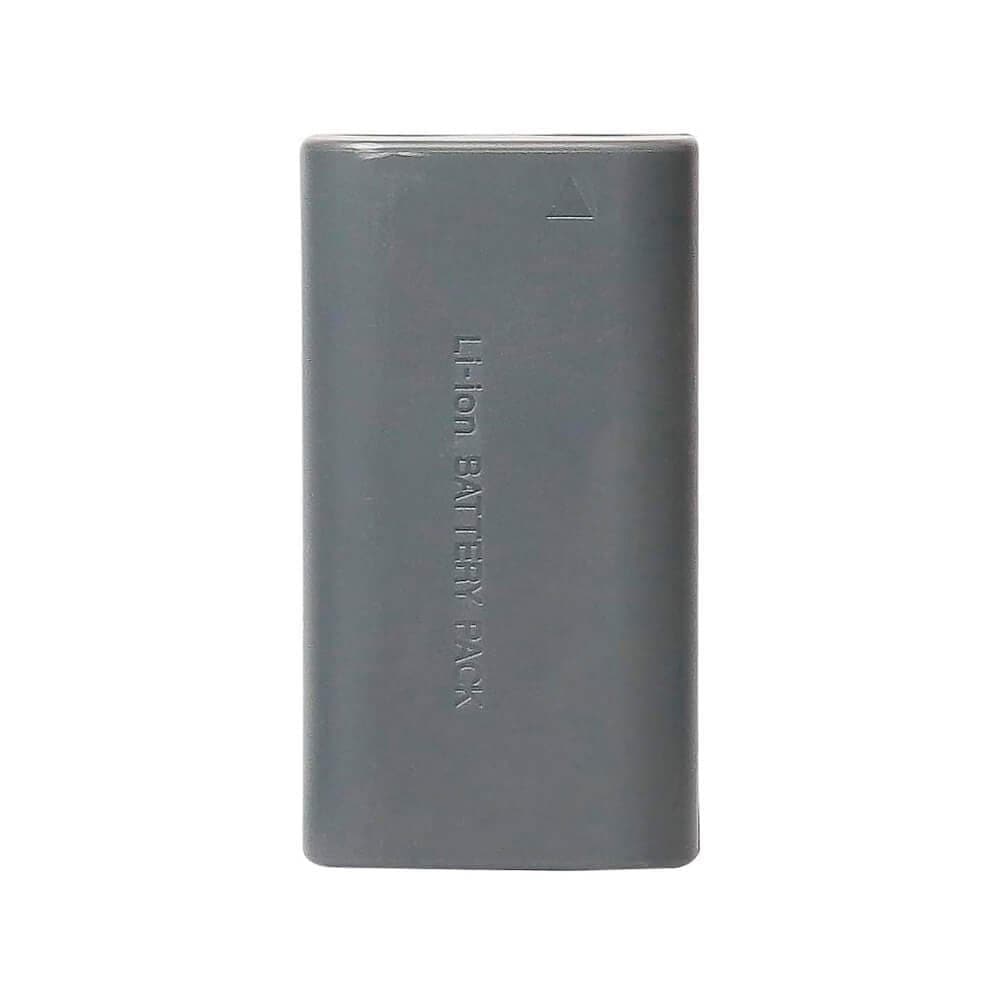

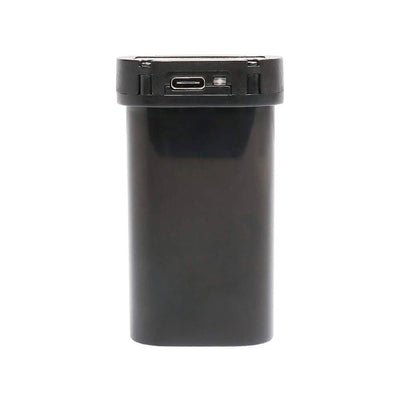

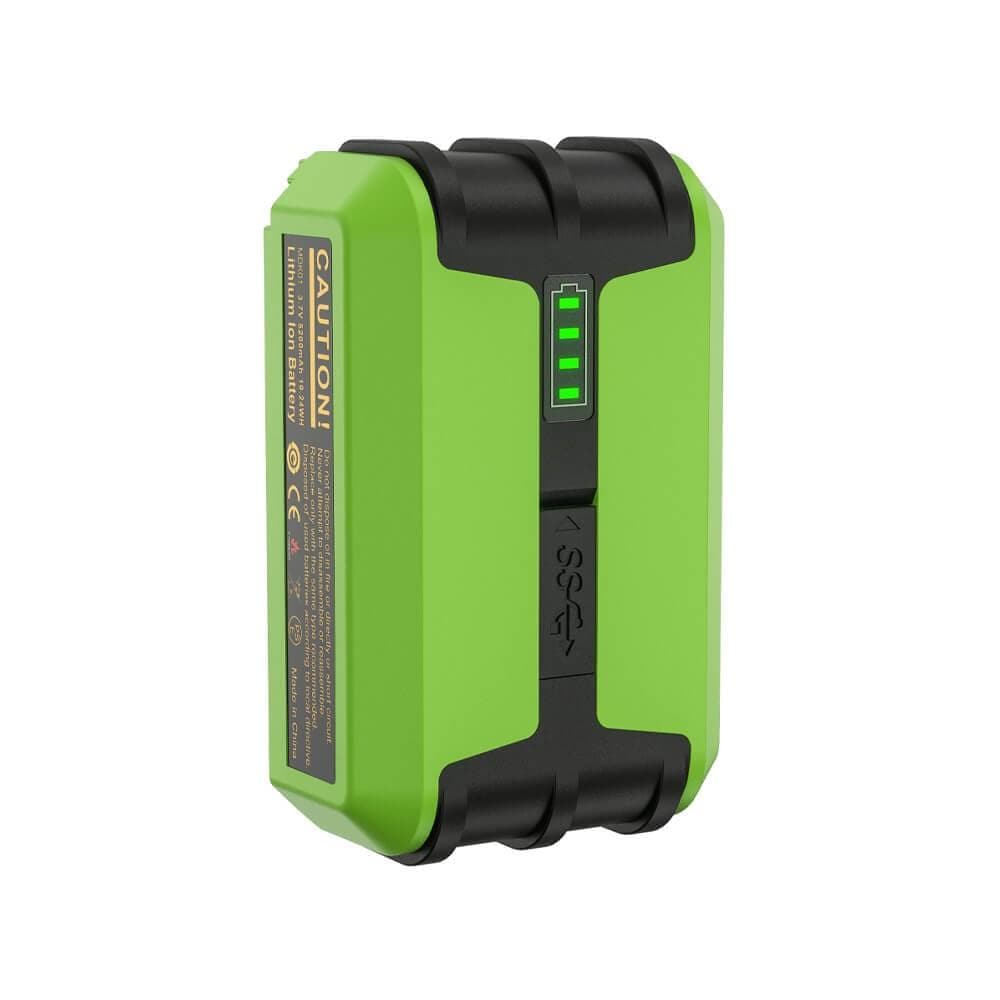

• Voltage: 3.7 Volts
• Battery Capacity: 2400mAh
• Battery Cell Composition: Lithium
• Reusability: Rechargeable
• Running Time: 5 Hours
• Number of Batteries: 1 Lithium Ion batteries required. (included)
• Supported Models: 703CG/704CG

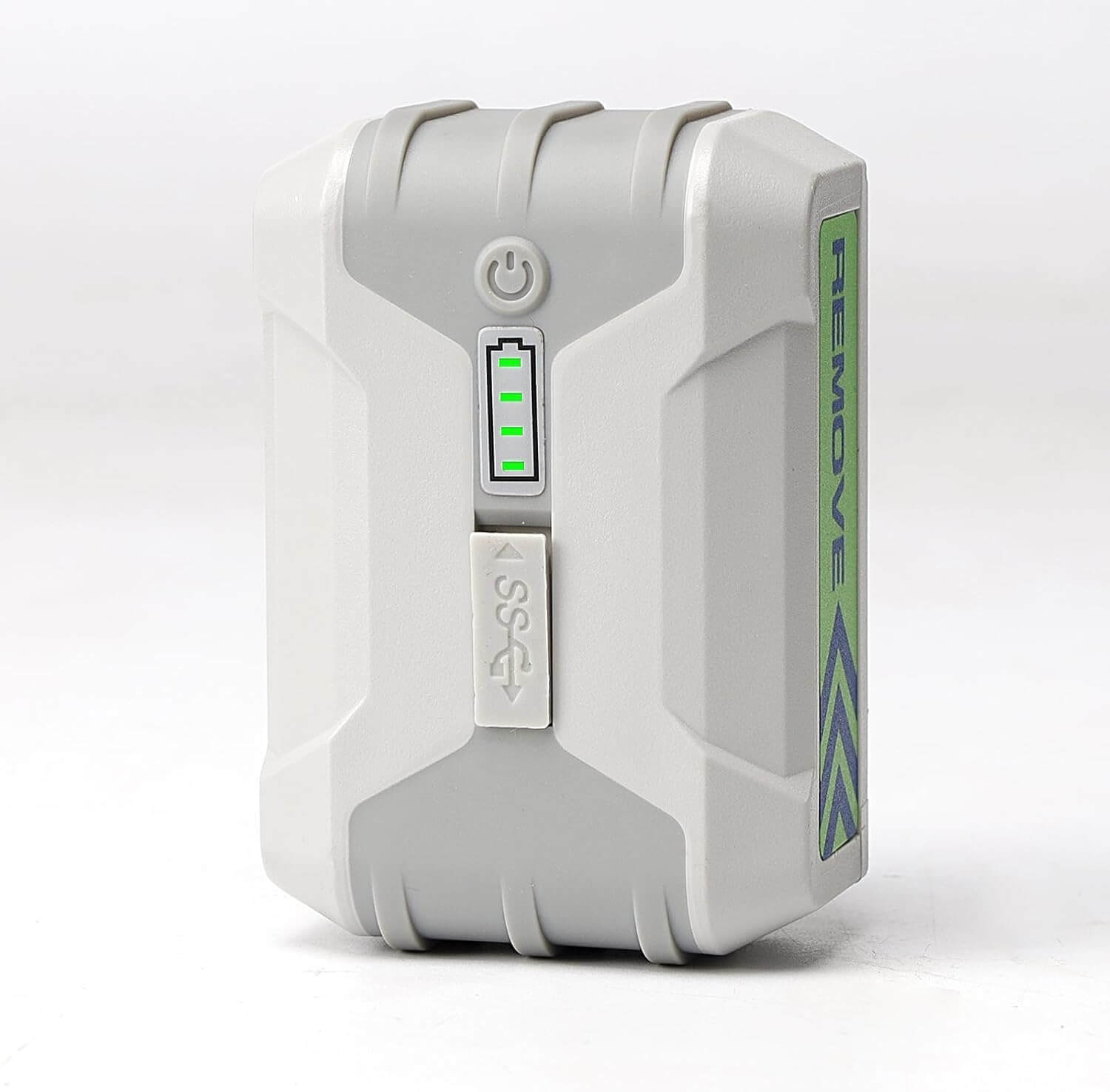

The Li-ion battery pack can be quick to release and install is very easy to use.
The Li-ion Battery can be charger separately and the four power indicators on the battery allow users to know the charging status.

Supported Models: Huepar Pro ZK03CG/ZK03CG-S/ZK03CR/ZK03DG/ZK03DG-S/ZK04CG-S/ZK04CG/ZK04CR/GK011SG

• BUILT-IN LI-ION BATTERY & ELECTRIC ANGULAR SENSOR: Powered by a large-capacity Li-ion battery, Huepar laser measure offers remarkable run time for all-day jobs and can work up to 8000 times when fully charged. There is no need to replace the battery frequently making your work more efficiently. Equipped with electronic angular sensor, laser distance meter delivers higher accuracy and faster angle measurements compared to bubble level meters.

• MULTIPLE MEASUREMENT MODES: This rangefinders for sale delivers angle, area, distance, volume, Pythagorean measurement modes. Featuring continuous measurement, addition and subtraction, calibration, automatic calculation of area and &volume and 30 groups data memory function, it is ideal for home and construction or industries applications.

• HIGH ACCURACY & UNIT SWITCHABLE: Huepar distance measure features long-range measuring with extreme accuracy and can measures distances up to 165-feet within 1/16-inch. The tool can measure from front/middle/rear reference points making it easy to measure in different scenarios. All measurements are displayed in real time and can be switchable among M/In/Ft freely.

• BACKLIT LCD AND MUTE SETTING: Large backlight screen provides users with a better visibility in low-light or no-light working conditions. Automatic shutdown without operation 150s.Mute setting allows users to adjust the volume freely which is suitable for using in library, classroom and other quiet places.

• DURABLE ROBUST DESIGN: Huepar rangefinders for sale is IP54 rated to withstand tough working environments. It features small dimensions and a handy pocket-size design so this laser measure can fit in any pocket. 1/4" inch threaded mount enables it to be attached to tripod or other tools for use. Package Contents: 1 x Laser Distance Meter, 1 x User Manual, 1 x Hand Strap, 1 x USB cable

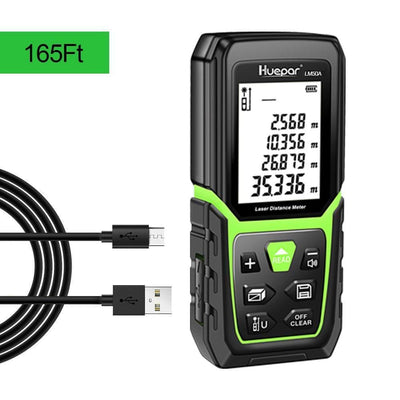

LM50A Laser Distance Measure Specifications:

• Laser class: Class 2 (IEC/EN60825-1/2014), output power <1mW
• Special Features：Electronic angle sensor
• Power source: 3.7V 850mAh lithium battery
• Measuring accuracy: ±1/16 inch
• Angle range: ±90°
• Working range: 165Ft
• Max storage: 30 units
• Display Style: Backlit LCD
• Measuring units: M/In/Ft
• Laser type: 635nm
• Automatically cut off laser: 20s & Automatic shutdown: 150s
• Dimension: 4.5 x 2 x 1 inch
• Plug Profile: 1/4"-20
• Recharge : USB Charging

WARNING: Avoid direct exposure of the laser beam to the eyes.

Multiple Measurement Methods

• Huepar rangefinders for sale/ digital laser distance meter supports various measuring modes including distance, area, volume and Pythagoras measurement.
• LM50A is perfect to use in hard-to-reach areas and outdoors with its IP54 waterproof rating. It is also widely applicable to industrial, commercial and home use.

• With built-in Electronic Angular Sensor device, Huepar LM50A laser measuring displays the data in real time when measuring.
• Compared to Bubble Levels, it can be more intuitive and easier to find the horizontal direction, and can work better in different conditions, faster and more accurate.
• Mute setting enable users to adjust the volume freely while measuring in some quiet places like library, classroom, etc.

Various Reference Points & Manual-calibration

• The tool can measure from three different reference points (the front, the middle and the rear of the device), making it easy to measure in different scenarios.
• Calibration function provides more accurate measurement.

Multiple Functions

• Max &Min values measurement.
• Automatic calculation of area and volume.
• 30 groups data memory; Manually delete unwanted data.
• Change unit among M/In/Ft freely according to your needs. The default unit is meter.
• User can use the addition/subtraction function to sum up the length/area/volume of several surfaces.

Waterproof & Dust-proof

• Featuring IP54 waterproof protects the laser distance measure to the maximum extent, under various working conditions.

Package Contents:

• 1 x Huepar Laser Measure
• 1 x User Manual
• 1 x Hand Strap
• 1 x USB cable

• BUILT-IN LI-ION BATTERY & ELECTRIC ANGULAR SENSOR: Powered by a large-capacity Li-ion battery, Huepar laser measure offers remarkable run time for all-day jobs and can work up to 8000 times when fully charged. There is no need to replace the battery frequently making your work more efficiently. Equipped with electronic angular sensor, laser distance meter delivers higher accuracy and faster angle measurements compared to bubble level meters.

• MULTIPLE MEASUREMENT MODES: This laser range finder delivers angle, area, distance, volume, Pythagorean measurement modes. Featuring continuous measurement, addition and subtraction, calibration, automatic calculation of area and &volume and 30 groups data memory function, it is ideal for home and construction or industries applications.

• HIGH ACCURACY & UNIT SWITCHABLE: Huepar distance measure laser range finder features long-range measuring with extreme accuracy and can measures distances up to 165-feet within 1/16-inch. The laser range finder can measure from front/middle/rear reference points making it easy to measure in different scenarios. All measurements are displayed in real time and can be switchable among M/In/Ft freely.

• BACKLIT LCD AND MUTE SETTING: Large backlight screen provides users with a better visibility in low-light or no-light working conditions. Automatic shutdown without operation 150s.Mute setting allows users to adjust the volume freely which is suitable for using in library, classroom and other quiet places.

• DURABLE ROBUST DESIGN: Huepar laser range finder is IP54 rated to withstand tough working environments. It features small dimensions and a handy pocket-size design so this laser measure can fit in any pocket. 1/4" inch threaded mount enables it to be attached to tripod or other tools for use. Package Contents: 1 x Laser Distance Meter, 1 x User Manual, 1 x Hand Strap, 1 x USB cable

LM100A Laser Distance Measure Laser Range Finder Specifications:

• Laser class: Class 2 (IEC/EN60825-1/2014), output power <1mW
• Special Features：Electronic angle sensor
• Power source: 3.7V 850mAh lithium battery
• Measuring accuracy: ±1/16 inch
• Angle range: ±90°
• Working range: 330Ft
• Max storage: 30 units
• Display Style: Backlit LCD
• Measuring units: M/In/Ft
• Laser type: 635nm
• Automatically cut off laser: 20s & Automatic shutdown: 150s
• Dimension: 4.5 x 2 x 1 inch
• Plug Profile: 1/4"-20
• Recharge : USB Charging

 WARNING: Avoid direct exposure of the laser beam to the eyes.

Multiple Measurement Methods

• Huepar digital laser distance meter laser range finder supports various measuring modes including distance, area, volume and Pythagoras measurement.
• LM100A is perfect to use in hard-to-reach areas and outdoors with its IP54 waterproof rating. It is also widely applicable to industrial, commercial and home use.

Electronic Angle Sensor& Mute Setting

• With built-in Electronic Angular Sensor device, Huepar LM100A laser measuring displays the data in real time when measuring.
• Compared to Bubble Levels, it can be more intuitive and easier to find the horizontal direction, and can work better in different conditions, faster and more accurate.
• Mute setting enable users to adjust the volume freely while measuring in some quiet places like library, classroom, etc.

Various Reference Points & Manual-calibration

The tool can measure from three different reference points (the front, the middle and the rear of the device), making it easy to measure in different scenarios.
Calibration function provides more accurate measurement.

Multiple Functions

Max &Min values measurement.
Automatic calculation of area and volume.
30 groups data memory; Manually delete unwanted data.
Change unit among M/In/Ft freely according to your needs. The default unit is meter.
User can use the addition/subtraction function to sum up the length/area/volume of several surfaces.

Waterproof & Dust-proof

Featuring IP54 waterproof protects the laser distance measure to the maximum extent, under various working conditions.

Package Contents:

• 1 x Huepar Laser Measure
• 1 x User Manual
• 1 x Hand Strap
• 1 x USB cable
• 1 x Reflector
